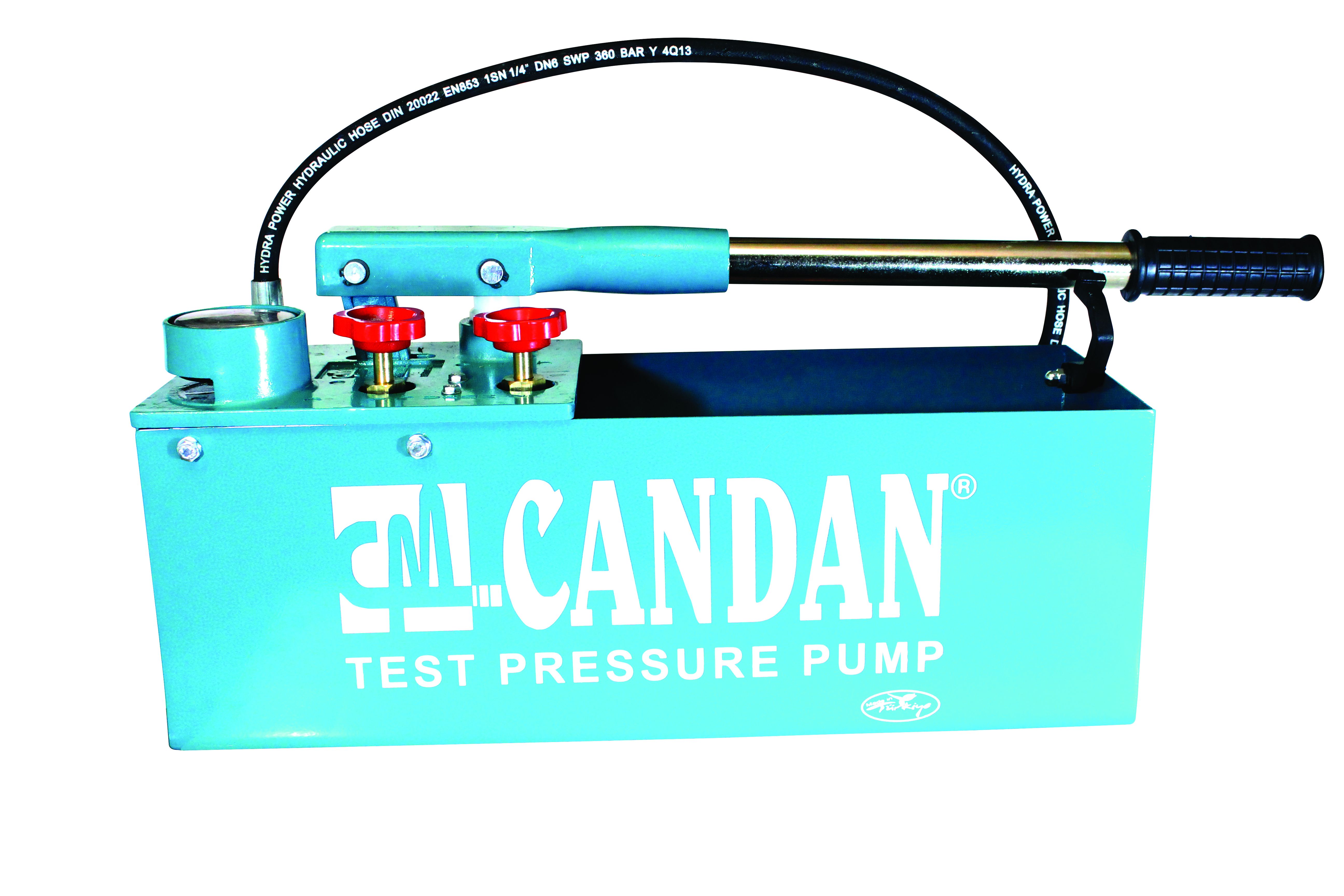

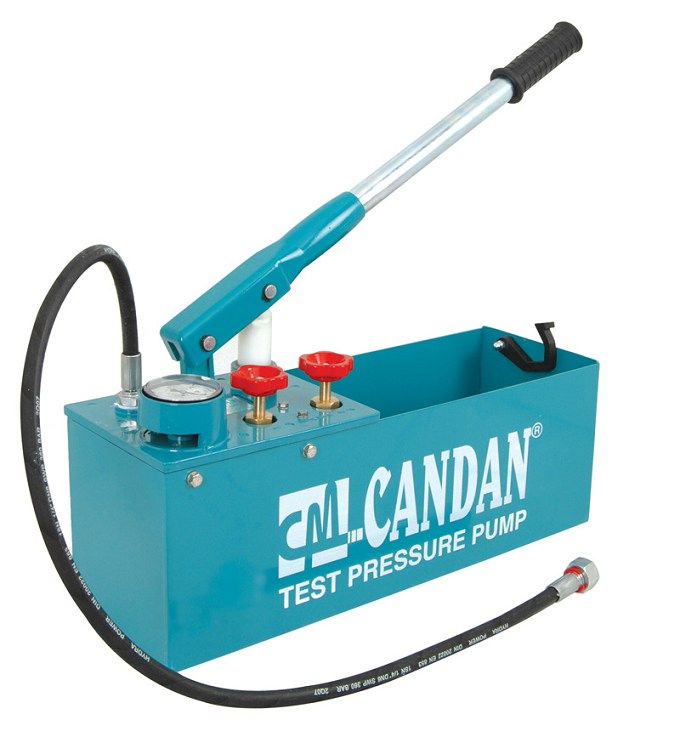

CM-60 TEST PUMP
Name
TEST PRESSURE PUMP (TESTING PUMP)
Code
CM - 60
Dimensions
190x530x305 mm
Weight
8 kg
Tank volume
12 l.
Piston volume
45 ml
Outlet connection
R 1/2"
Test Liquid Water
oil
Maximum temperature
500 C – 1200 F
Maximum pressure
60 bar 860 psi. 6 Mpa
Other Remarks
The system pressure of the drinking water we consume at home and at work in our daily life is between 5 and 8 bars. A test pressure of 15 bars is sufficient for a leak test on this kind of systems.
